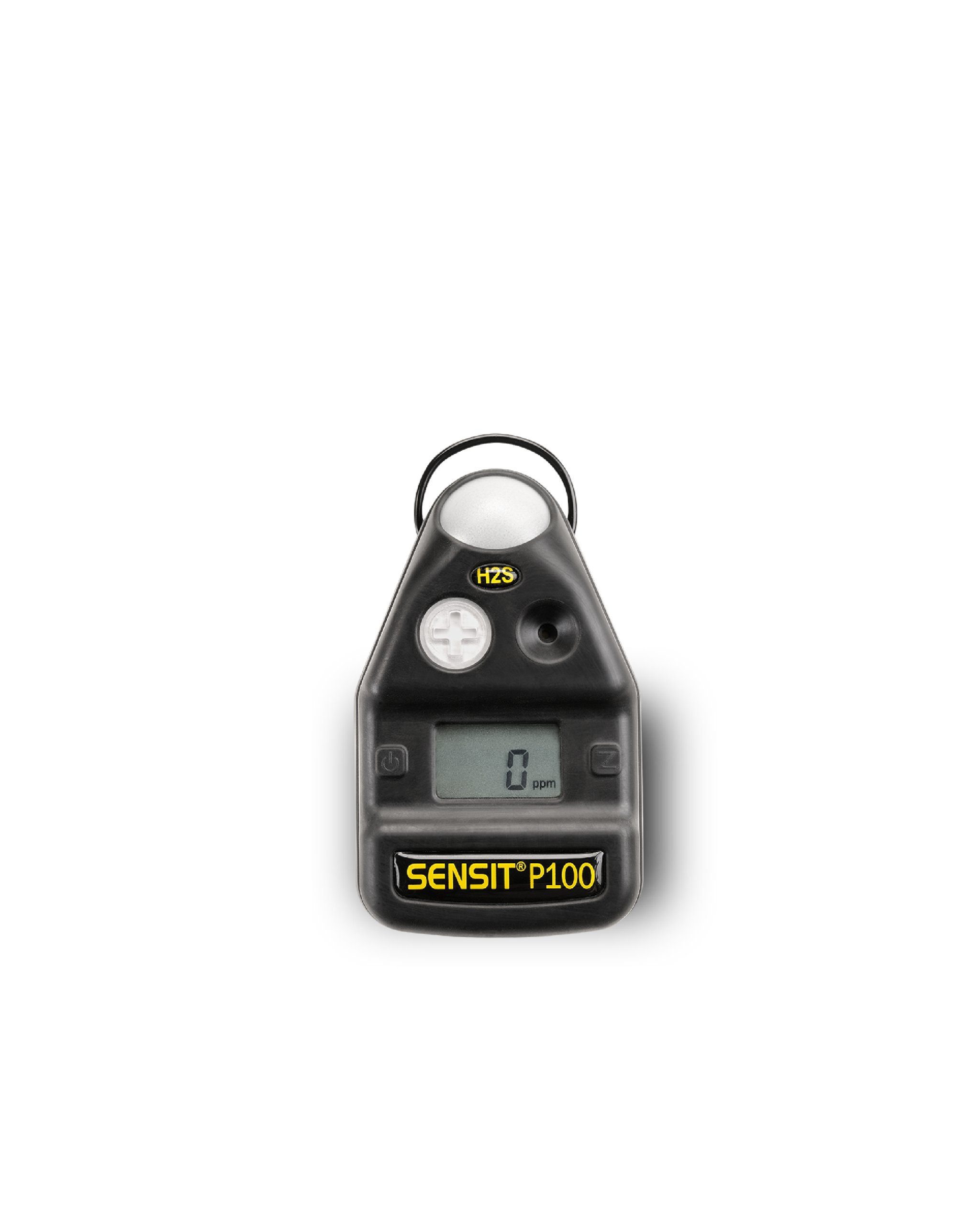

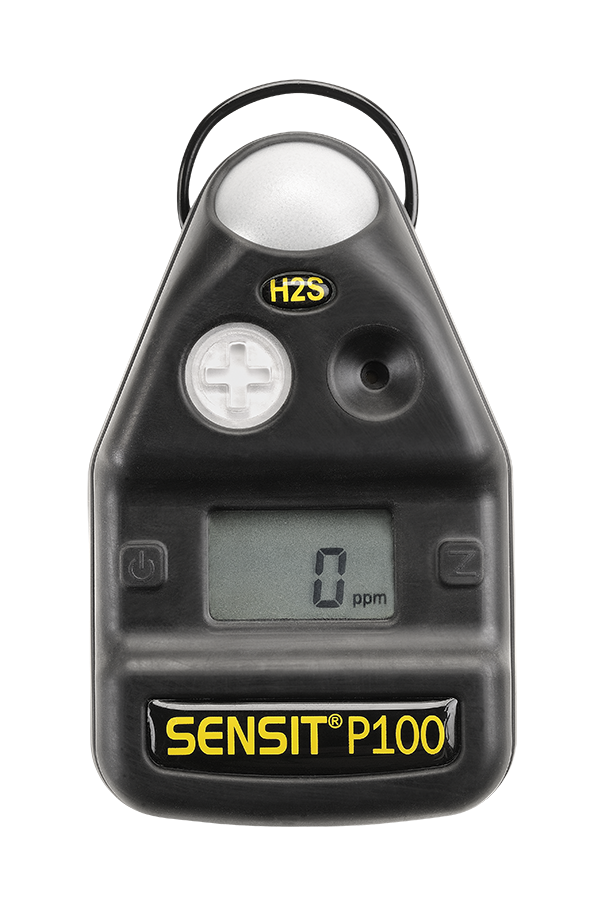

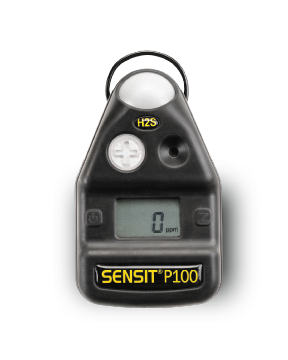

SENSIT P100

The SENSIT® P100 is an exceptionally rugged personal gas monitor available in single gas configurations.

Downloads

Want to Learn More?

Introduction

SENSIT® P100 is a highly reliable and rugged personal gas monitor built to withstand the toughest field conditions. It is an excellent choice for those who need a gas monitor that is durable and dependable.

With housing constructed of durable ABS plastic and shock-absorbing material that protects it from damage. Sealed to maintain the integrity of its IP65 rating. Making it a reliable choice in harsh outdoor environments.

Standard Features

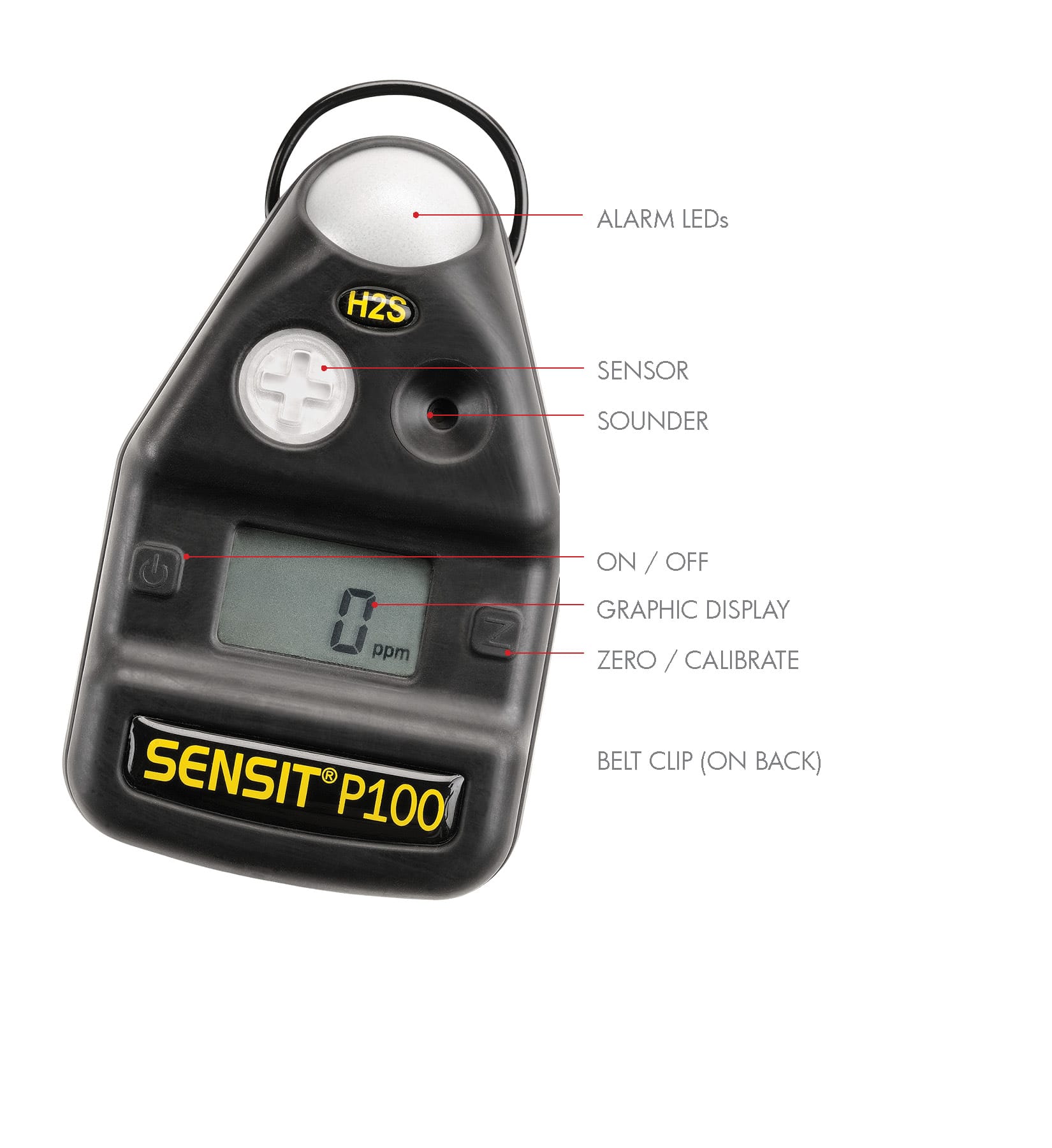

One of the standout features of this personal gas monitor is its simple, easy-to-use two-button operation for powering up, zeroing, and performing calibration. The device also features multiple LEDs beneath the frosted area, creating a bright warning, even in bright sunlight. This feature is particularly useful when working in an environment with limited visibility.

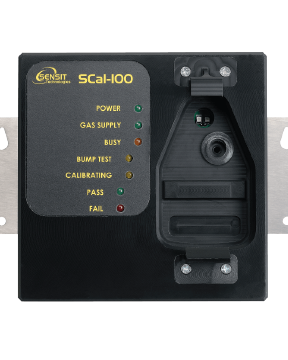

Calibrate your gas monitor with ease using SENSIT® P100. Choose a manual or SCAL-100 Calibration Station for a quick and effortless process. Perfect for frequent calibration, this feature saves you time and hassle. Trust SENSIT for accurate results and a stress-free experience.

SENSIT® P100 is known for its accuracy, ease of use, and maintenance. It features a range of available sensors, including:

  • Hydrogen Sulfide (H2S)
  • Hydrogen Cyanide (HCN)
  • Oxygen (O2)

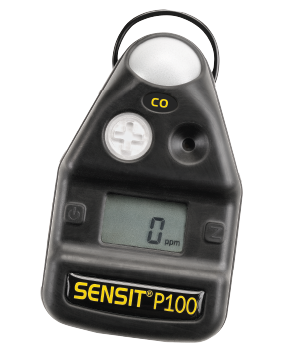

  • Carbon Monoxide (CO)
  • Sulfur Dioxide (SO2)

The ability to choose from multiple sensors makes it easy to customize your gas monitor to your specific needs.

Another critical feature of SENSIT® P100 is its intrinsic safety design. Certified to be safe for use in hazardous environments. The device offers a one-button operation for audible, visual, and vibration alarms. As well as STEL and TWA alarms, alarm event memory, and easy field calibration.

With a 2-year operation and a limited warranty (including the sensor), SENSIT® P100 is a reliable choice. An extended warranty is also available, and you can use it with SCAL-100 Test Stations.

Application

In summary, SENSIT® P100 is an excellent personal gas monitor built to last. Its rugged design, ease of use, and range of available sensors make it an ideal choice for anyone who needs to monitor gas levels in a hazardous environment.  The SENSIT® P100 is a dependable and effective way to stay safe and protected.

Related Product Videos

Technical Specification

Additional information

Sensor Types

O2
CO*
H2S
HCN
SO2
*PPM Optional

Gases

?

Measurement Range

O2 – 25%
CO* – 0-999*
H2S – 0-100
HCN – 0-30
SO2 – 0-20

Resolution

O2 – 0.1%
CO* – 1PPM
H2S – 1PPM
HCN – 0.1PPM
SO2 – 0.1PPM

Battery Type

3.6V Lithium Battery

Battery Life

2+ Years

Size

3.81” x 2.31” x 0.8” (9.67 x 5.87 x 2 cm)

Weight

3.6 oz. (105 g)

Operating Temperature

-4 to 104° F (-20 to 40° C)

Humidty

15 to 90% RH, non-condensing

*CO Extended Display Option

Detection Range:
0PPM – 2% VOL
(2000PPM equivalent)
Resolution:
1PPM for 0-999PPM
0.1% VOL for 1000-2000PPM
