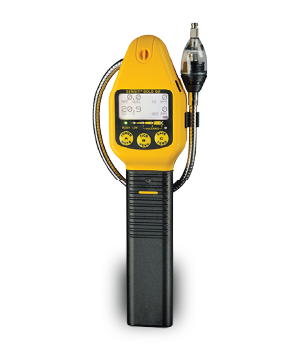

SENSIT GOLD 2
SENSIT GOLD 2 - Image 2

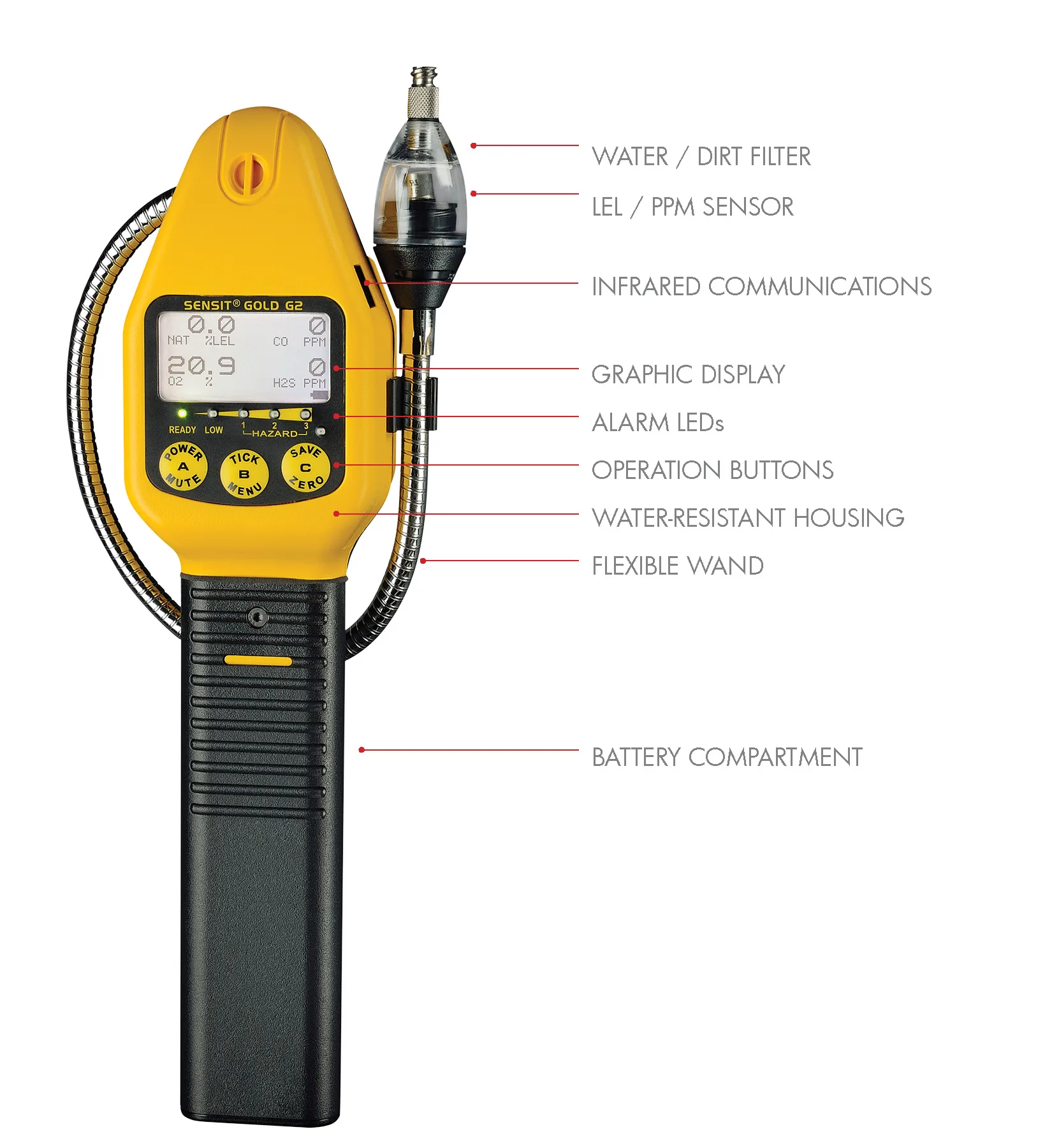

SENSIT GOLD 2 - Image 3

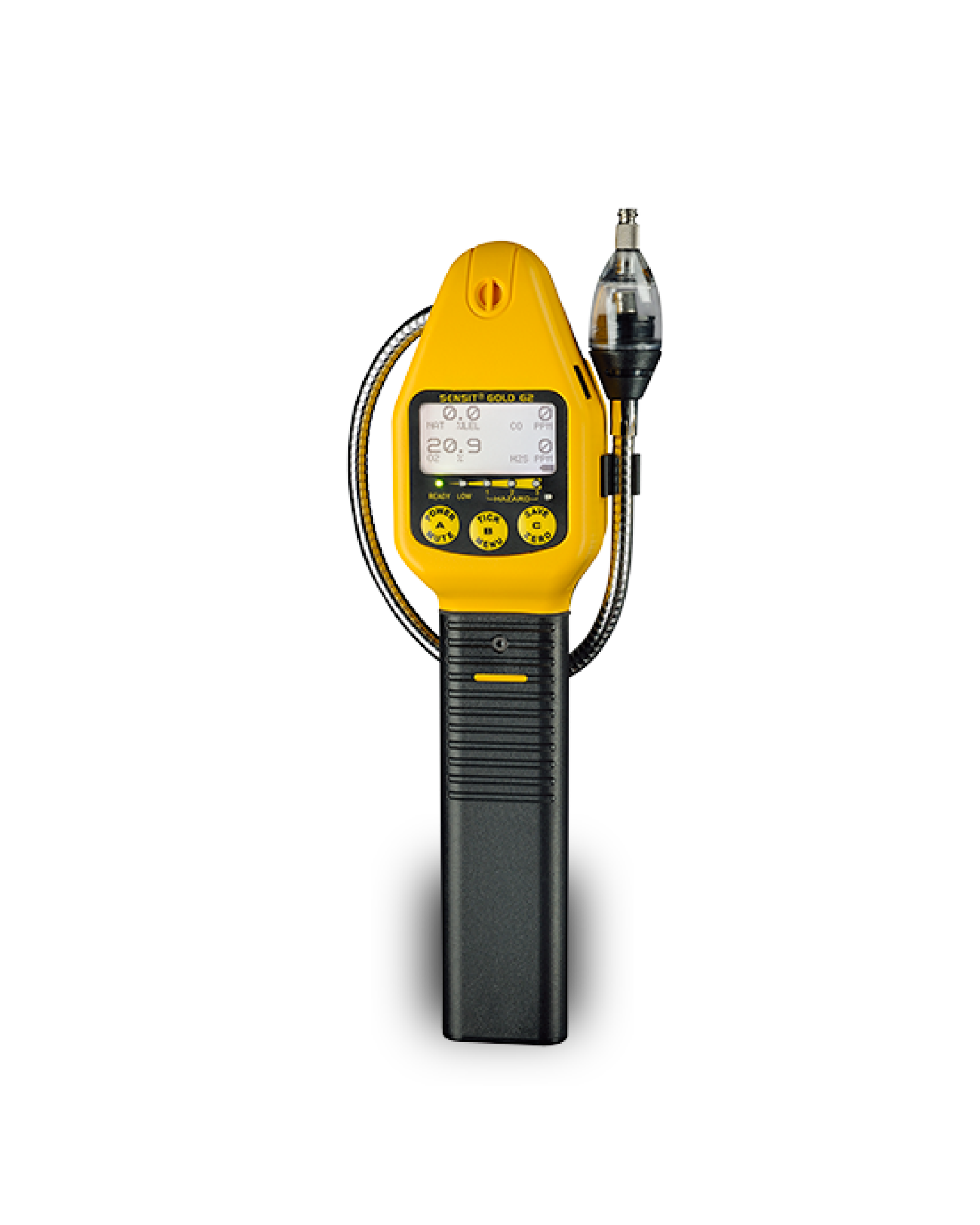

SENSIT GOLD 2

The SENSIT® GOLD 2 is designed for locating and grading above & below ground gas leaks alongside use in confined space applications. The GOLD 2 includes the following features:

|   Readings in PPM, LEL, and/or %VOL

|   Methane & Propane Selectable

|   Audible/Visual Alarm & Tick Mode

|   Configurable Up To 4 Gases

|   Replaceable Alkaline Batteries

Downloads

Want to Learn More?

REQUEST INFO

Introduction

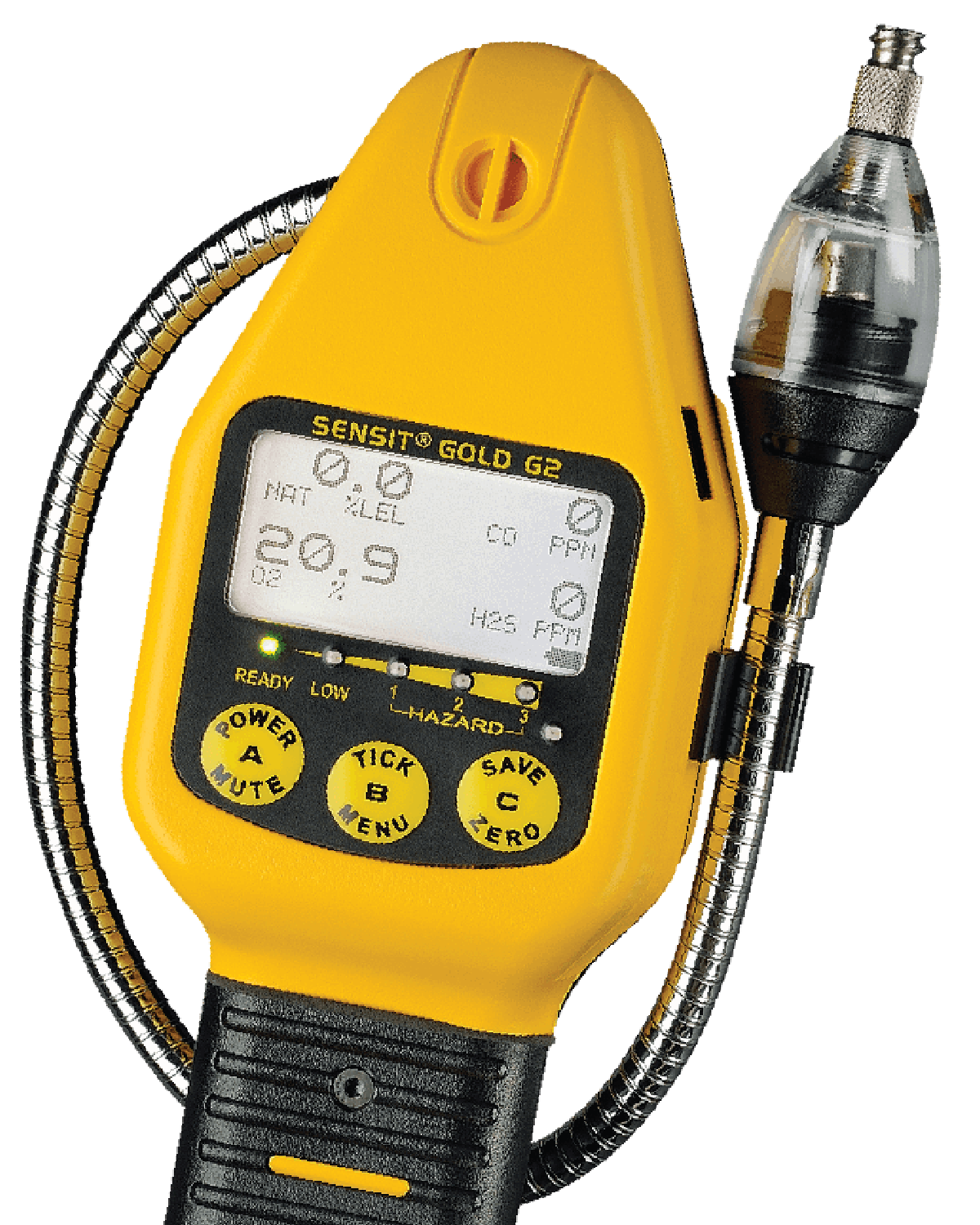

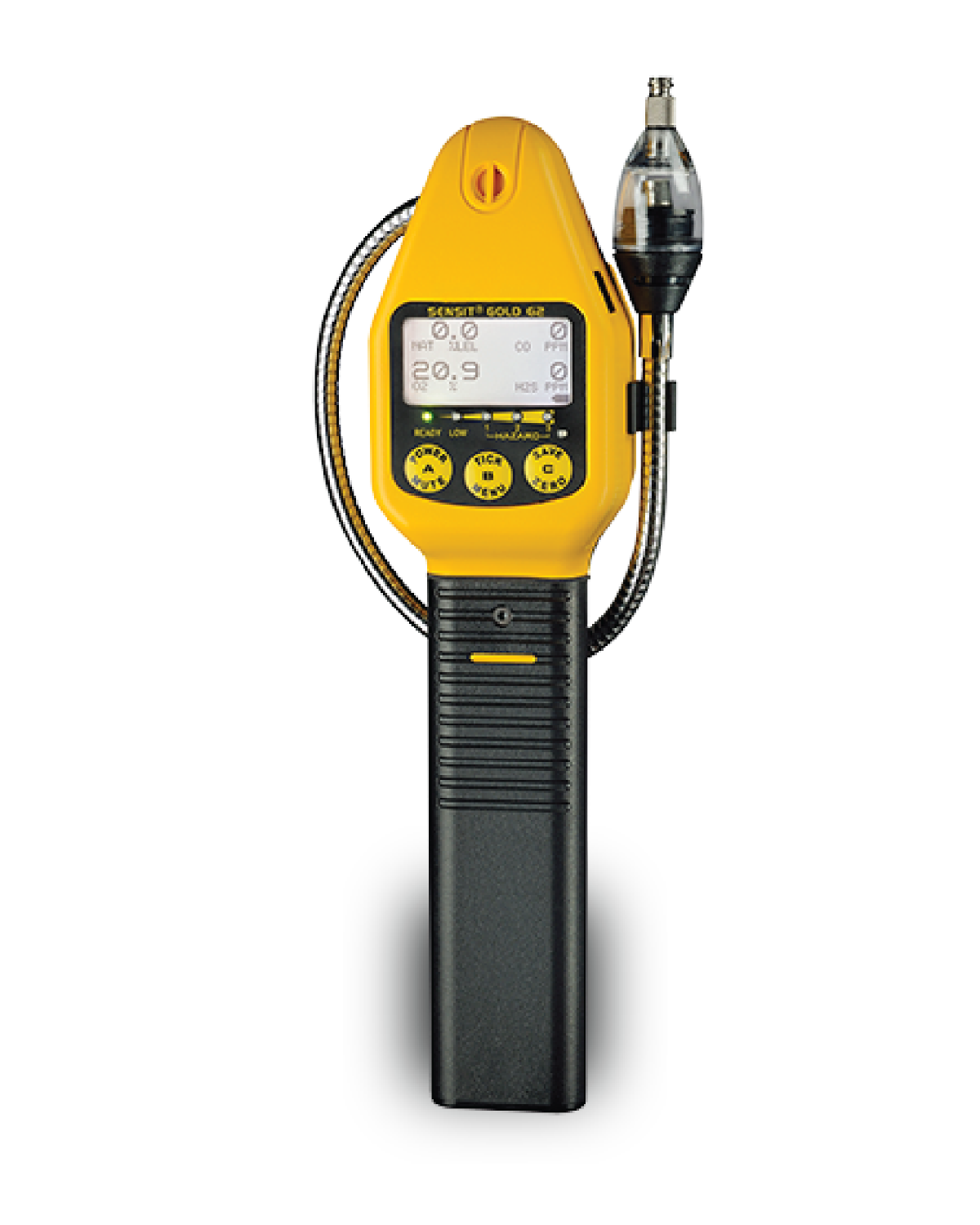

SENSIT® GOLD 2 Multi-Gas Detector is designed for locating and grading above & below ground alongside use in confined spaces. It is also suitable for detecting combustible gases in oxygen-free environments, making it ideal for inert gas operations.

The instrument can be configured for combustible gas readings in PPM, LEL and/or percent volume, and various toxic gases and oxygen.

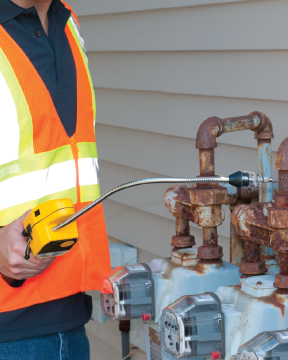

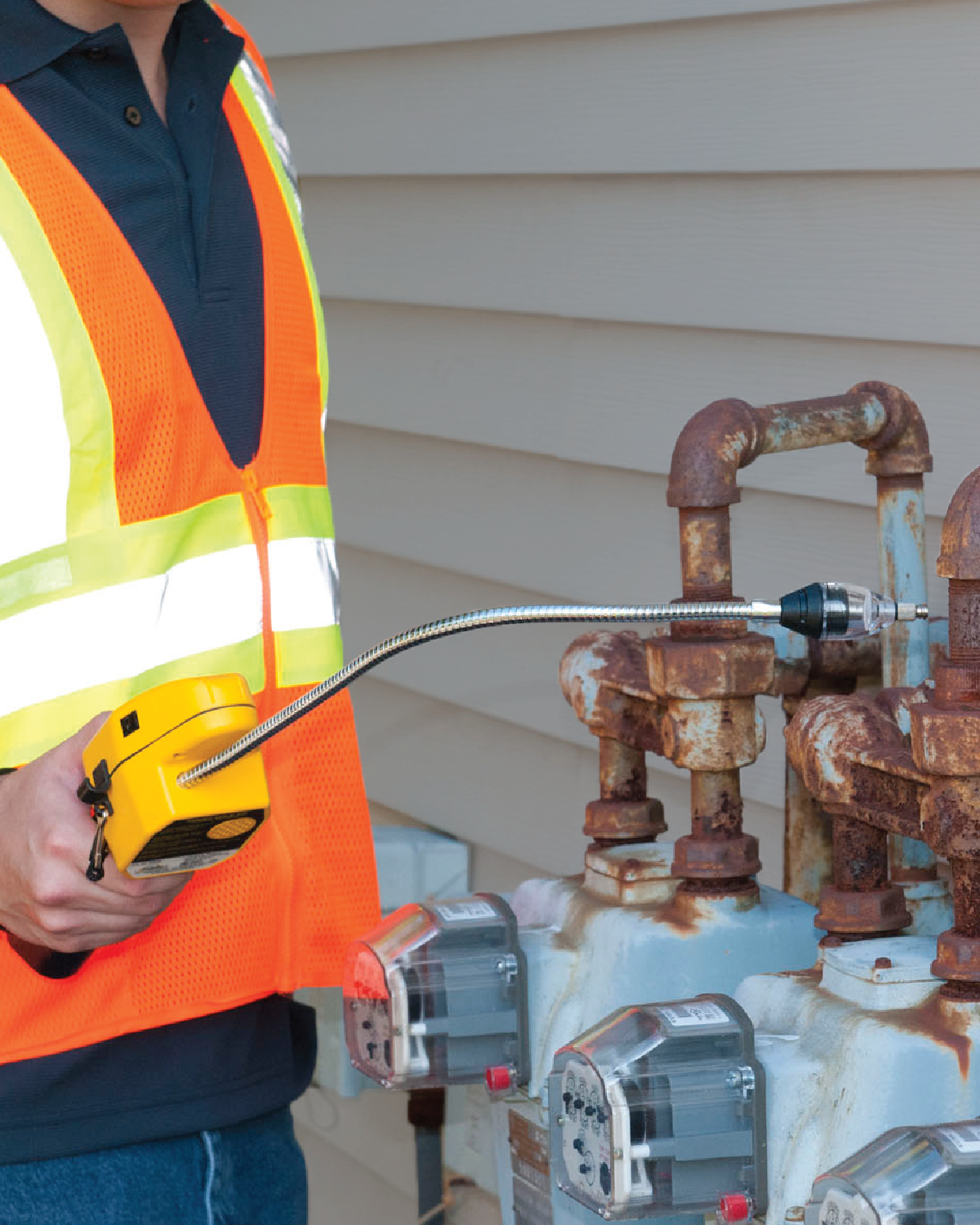

The SENSIT® GOLD 2 finds its applications in detecting combustible gas leaks, odor response investigations, underground leak pinpointing, carbon monoxide investigations, confined space monitoring, combustible gas measurements, pipeline purging, method 21 emissions testing, and inert gas operations.

DISPLAYS UP TO 4 GASES SIMULTANEOUSLY

SENSIT® GOLD 2 is extremely accurate, durable, and easy to use and maintain. It can display up to four gases simultaneously, including:

  • LEL (% volume and PPM optional)
  • Oxygen
  • Carbon Monoxide
  • Hydrogen Sulfide
  • Hydrogen Cyanide

It also has selectable combustible gas types, such as methane (natural gas) and propane.

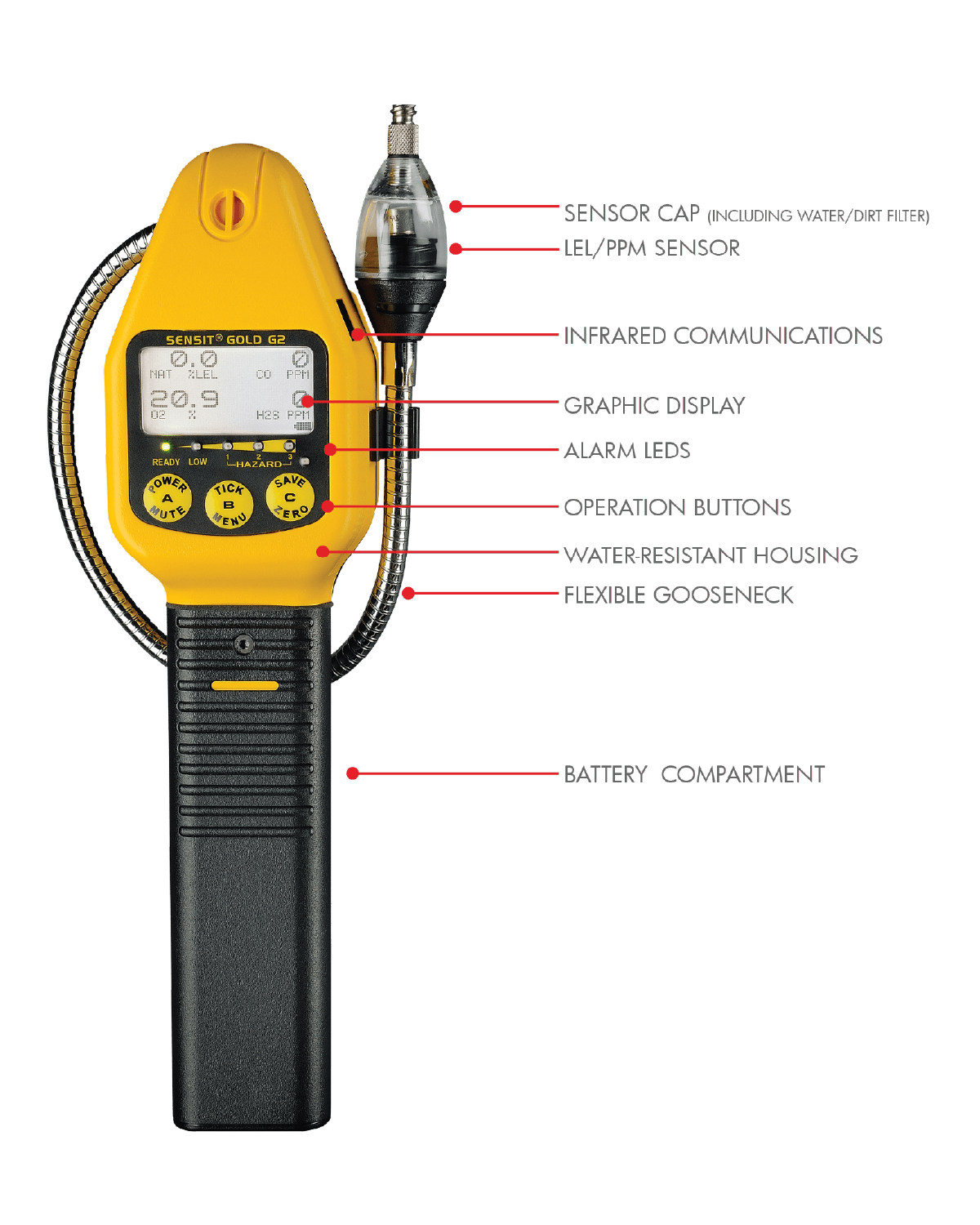

Standard Features

It has several standard features:

  • Class 1 Division 1 Intrinsically Safe Design
  • Internal Pump for Fast Sampling
  • Audible “Tick” Control for Fast Leak Location
  • LED Warning Lights

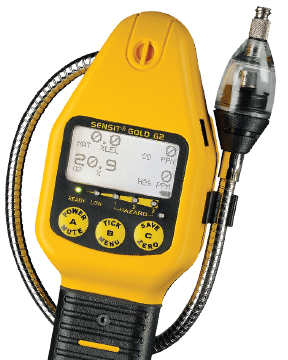

  • Backlit Graphic Display
  • Loud Audible Alarm
  • Battery Strength Indicator
  • Internal Memory

Certifications

It is certified by ATEX and UL.

Related Product Videos

MORE ON YOUTUBE

Technical Specification

Additional information

Sensor Types

PPM, LEL, % NAT GAS, % Propane, O2, CO, H2S, HCN
Gases

Propane, Oxygen, Carbon Monoxide, Hydrogen Sulfide, Hydrogen Cyanide
Measurement Range

PPM – 0-10,000 ppm
LEL – 0-100% LEL
% NAT GAS – 5-100% GAS
% Propane – 2.2-100% GAS
CO – 0-2,000 ppm
O2 – 0-25% VOL
H2S – 0-100 ppm
HCN – 0-30 ppm
Resolution

PPM – 1 ppm (0- 5,000 ppm), 10 ppm (5,000 – 50,000 ppm); 0.1% LEL; 0.1% VOL;
% NAT GAS – 0.1%
% Propane – 0.1%
O2 – 0.1% VOL;
CO – 1 ppm;
H2S, HCN – 1 ppm (default) or 0.1 ppm
Accuracy

PPM – ±10% or 500 ppm* / 1% LEL*
% NAT GAS – ±5%
O2 – ±10% or 0.2% VOL
CO – ±5% or 5 ppm*
H2S – ±5% or 2 ppm*
HCN – ±5% or 1 ppm*
* = whichever is greater
Battery Type

Alkaline
Battery Life

Approx. 18 hrs continuous
Size

11.5” x 3” x 2.32” (29.2 x 7.6 x 5.9 cm)
Weight

1.2 lb. (544 g)
Operating Temperature

–4°F to 104°F (–20°C to 40°C)
Storage Temperature

–13°F to 149°F (–25°C to 65°C)
Data Storage Capacity

100 Instant Event Saves
1600 Auto Log Saves
100 Bar Hole Tests
